文本数据集上的半监督分类#

此示例演示了在标记数据稀缺时，半监督学习在TF-IDF特征上进行文本分类的有效性。为此，我们比较了四种不同的方法：

使用训练集中 100% 标记的监督学习（最佳情况）
- 使用SGDClassifier进行完全监督
- 代表标记数据充足时可能的最佳性能
使用训练集中 20% 标记的监督学习（基准）
- 与最佳情况相同的模型，但在标记训练数据的随机 20% 子集上进行训练
- 显示由于标记数据有限而导致的完全监督模型的性能下降
SelfTrainingClassifier（半监督）
- 使用 20% 标记数据 + 80% 未标记数据进行训练
- 迭代预测未标记数据的标签
- 演示自训练如何提高性能
LabelSpreading（半监督）
- 使用 20% 标记数据 + 80% 未标记数据进行训练
- 通过数据流形传播标签
- 展示基于图的方法如何利用未标记数据

此示例使用 20 newsgroups 数据集，重点关注五个类别。结果表明，通过有效利用未标记样本，半监督方法在标记数据有限的情况下可以实现优于监督学习的性能。

# Authors: The scikit-learn developers
# SPDX-License-Identifier: BSD-3-Clause

from sklearn.datasets import fetch_20newsgroups
from sklearn.feature_extraction.text import CountVectorizer, TfidfTransformer
from sklearn.linear_model import SGDClassifier
from sklearn.metrics import f1_score
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.semi_supervised import LabelSpreading, SelfTrainingClassifier

# Loading dataset containing first five categories
data = fetch_20newsgroups(
    subset="train",
    categories=[
        "alt.atheism",
        "comp.graphics",
        "comp.os.ms-windows.misc",
        "comp.sys.ibm.pc.hardware",
        "comp.sys.mac.hardware",
    ],
)

# Parameters
sdg_params = dict(alpha=1e-5, penalty="l2", loss="log_loss")
vectorizer_params = dict(ngram_range=(1, 2), min_df=5, max_df=0.8)

# Supervised Pipeline
pipeline = Pipeline(
    [
        ("vect", CountVectorizer(**vectorizer_params)),
        ("tfidf", TfidfTransformer()),
        ("clf", SGDClassifier(**sdg_params)),
    ]
)
# SelfTraining Pipeline
st_pipeline = Pipeline(
    [
        ("vect", CountVectorizer(**vectorizer_params)),
        ("tfidf", TfidfTransformer()),
        ("clf", SelfTrainingClassifier(SGDClassifier(**sdg_params))),
    ]
)
# LabelSpreading Pipeline
ls_pipeline = Pipeline(
    [
        ("vect", CountVectorizer(**vectorizer_params)),
        ("tfidf", TfidfTransformer()),
        ("clf", LabelSpreading()),
    ]
)


def eval_and_get_f1(clf, X_train, y_train, X_test, y_test):
    """Evaluate model performance and return F1 score"""
    print(f"   Number of training samples: {len(X_train)}")
    print(f"   Unlabeled samples in training set: {sum(1 for x in y_train if x == -1)}")
    clf.fit(X_train, y_train)
    y_pred = clf.predict(X_test)
    f1 = f1_score(y_test, y_pred, average="micro")
    print(f"   Micro-averaged F1 score on test set: {f1:.3f}")
    print("\n")
    return f1


X, y = data.data, data.target
X_train, X_test, y_train, y_test = train_test_split(X, y)

1. 评估使用 100%（标记）训练集的监督式 SGDClassifier。这代表了当模型可以完全访问所有标记示例时的最佳性能。

f1_scores = {}
print("1. Supervised SGDClassifier on 100% of the data:")
f1_scores["Supervised (100%)"] = eval_and_get_f1(
    pipeline, X_train, y_train, X_test, y_test
)

1. Supervised SGDClassifier on 100% of the data:
   Number of training samples: 2117
   Unlabeled samples in training set: 0
   Micro-averaged F1 score on test set: 0.901

2. 评估仅使用 20% 数据进行训练的监督式 SGDClassifier。这作为一个基准，用于说明限制训练样本所导致的性能下降。

import numpy as np

print("2. Supervised SGDClassifier on 20% of the training data:")
rng = np.random.default_rng(42)
y_mask = rng.random(len(y_train)) < 0.2
# X_20 and y_20 are the subset of the train dataset indicated by the mask
X_20, y_20 = map(list, zip(*((x, y) for x, y, m in zip(X_train, y_train, y_mask) if m)))
f1_scores["Supervised (20%)"] = eval_and_get_f1(pipeline, X_20, y_20, X_test, y_test)

2. Supervised SGDClassifier on 20% of the training data:
   Number of training samples: 434
   Unlabeled samples in training set: 0
   Micro-averaged F1 score on test set: 0.775

3. 评估使用 20% 标记数据和 80% 未标记数据的半监督 SelfTrainingClassifier。剩余的 80% 训练标签被屏蔽为未标记 (-1)，允许模型迭代地对它们进行标记和学习。

print(
    "3. SelfTrainingClassifier (semi-supervised) using 20% labeled "
    "+ 80% unlabeled data):"
)
y_train_semi = y_train.copy()
y_train_semi[~y_mask] = -1
f1_scores["SelfTraining"] = eval_and_get_f1(
    st_pipeline, X_train, y_train_semi, X_test, y_test
)

3. SelfTrainingClassifier (semi-supervised) using 20% labeled + 80% unlabeled data):
   Number of training samples: 2117
   Unlabeled samples in training set: 1683
   Micro-averaged F1 score on test set: 0.829

4. 评估使用 20% 标记数据和 80% 未标记数据的半监督 LabelSpreading 模型。与 SelfTraining 类似，模型推断未标记部分数据的标签以提高性能。

print("4. LabelSpreading (semi-supervised) using 20% labeled + 80% unlabeled data:")
f1_scores["LabelSpreading"] = eval_and_get_f1(
    ls_pipeline, X_train, y_train_semi, X_test, y_test
)

4. LabelSpreading (semi-supervised) using 20% labeled + 80% unlabeled data:
   Number of training samples: 2117
   Unlabeled samples in training set: 1683
   Micro-averaged F1 score on test set: 0.647

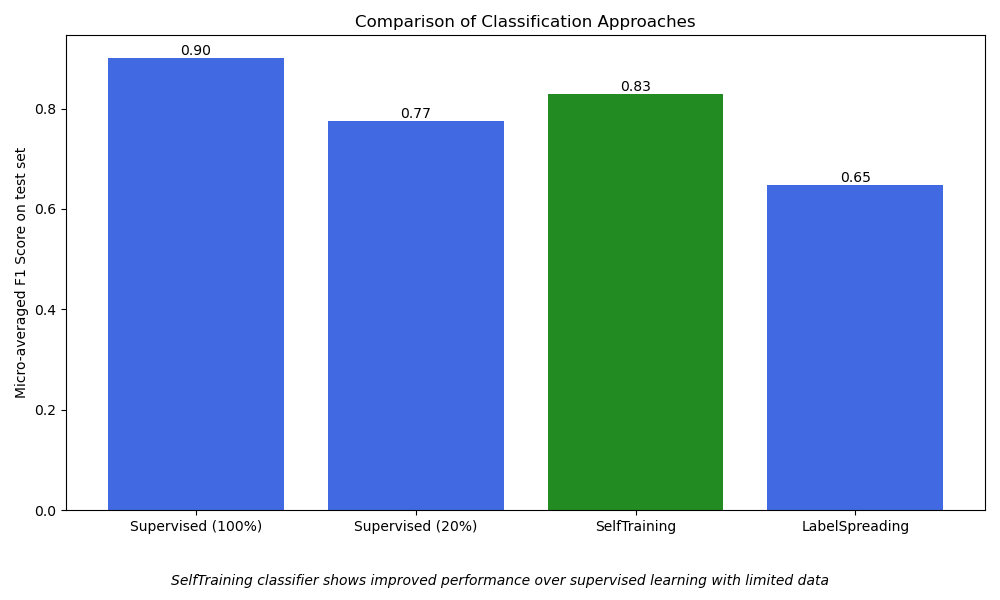

绘制结果#

使用条形图可视化不同分类方法的性能。这有助于比较每种方法基于微平均f1_score的性能。微平均计算跨所有类别的指标，提供一个单一的整体性能衡量标准，并允许在存在类别不平衡的情况下公平比较不同方法。

import matplotlib.pyplot as plt

plt.figure(figsize=(10, 6))

models = list(f1_scores.keys())
scores = list(f1_scores.values())

colors = ["royalblue", "royalblue", "forestgreen", "royalblue"]
bars = plt.bar(models, scores, color=colors)

plt.title("Comparison of Classification Approaches")
plt.ylabel("Micro-averaged F1 Score on test set")
plt.xticks()

for bar in bars:
    height = bar.get_height()
    plt.text(
        bar.get_x() + bar.get_width() / 2.0,
        height,
        f"{height:.2f}",
        ha="center",
        va="bottom",
    )

plt.figtext(
    0.5,
    0.02,
    "SelfTraining classifier shows improved performance over "
    "supervised learning with limited data",
    ha="center",
    va="bottom",
    fontsize=10,
    style="italic",
)

plt.tight_layout()
plt.subplots_adjust(bottom=0.15)
plt.show()

脚本总运行时间： (0 分钟 4.771 秒)
